multi EA 5100 Your entire C/N/S/X lab in one device
-
Extensive range of applications without device modification
-
A single analyzer for solid, liquid, gaseous and LPG samples
-
Self Check System for unattended operation and reliable results
-
Vertical and horizontal combustion in one system
Product Details
Versatile, fast, and sensitive
The multi EA 5100 is extremely versatile: In addition to the testing of carbon, nitrogen, sulfur, and chlorine, the instrument also provides for the determination of important environmental parameters such as TOC, AOX/TOX, and EOX. C/N/S/X testing is carried out in one analysis cycle, the change between C/N/S and X determination is fully automatic, with no conversion of the instrument required. Preset standard methods simplify your work further and reduce measuring time.
- Optimal for oil and gas, petrochemical and chemical, and polymer industries
- Compliant for a large number of common international and national regulations (ASTM, EPA, DIN, ISO, EN, etc.)
- The modular principle allows for the system to be designed individually – an extension is possible at any time should your requirements change
- HiPerSens detection provides for a broad linear measuring range at the highest levels of detection
High sensitivity, fewer replicates – fast analyses, high throughput
In addition to system and operation safety, the device offers reliable and fast measurement results. Flexible automation possibilities for a high sample throughput reduce the costs per analysis considerably. The multi EA 5100 guarantees competitive advantage of your lab in terms of cost-effectivesness and analysis quality.
multi EA 5100 – Product Video
The multi EA 5100 is your flexible all-round solution for sulfur, nitrogen, chlorine and carbon analysis in solids, liquids and gases. QC analysis, research and contract labs will benefit from its combination of outstanding robustness and sensitivity, plus quality, service and cost-effective 24/7 high-throughput analysis in every matrix.
What Our Customers Say

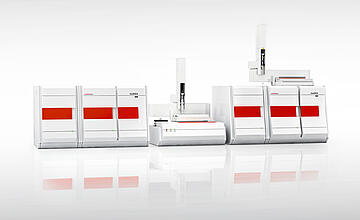

multi EA 5000 Predecessor
The elemental analyzer multi EA 5000 is a versatile all-rounder for the elemental analysis of nitrogen, sulfur, carbon and chlorine. Thanks to its modular design, the multi EA 5000 can be used for a variety of other analyses as well - including parameters such as TOC, EOX or AOX/TOX. The systems can be configured to meet individual requirements. Analytik Jena uses the unique double furnace technology for sample oxidation. It allows you to switch quickly between vertical and horizontal operation modes with a single instrument. This ensures optimum combustion of almost any sample matrix.
Applications
Applications
Measurement of Soot in Ambient Air - Thermographical Determination of Elemental Carbon (EC) after Thermal Desorption of Organic Carbon (OC) Based on VDI 2465-2
Applications
Total Nitrogen Determination in Sugar and Starch by Catalyst-Free High-Temperature Combustion and Chemiluminescence Detection
Safe and Fast Determination of N/S/Cl Contents in Lactic Acid by Means of Organic Elemental Analysis
Determination of Total Chlorine in Palm Oil with the Elemental Analyzer multi EA 5100
Détermination de différents paramètres de chlore dans l'huile de palme avec l'analyseur élémentaire multi EA 5100 (FR)
Bestimmung verschiedener Chlor-Parameter in Palmöl mit dem Elementaranalysator multi EA 5100 (DE)
Applications
Safe and Fast Determination of N/S/Cl Contents in Lactic Acid by Means of Organic Elemental Analysis
Standard Test Method for Determining Organic Chloride in Aromatic Hydrocarbons and Related Chemicals by Microcoulometry acc. to ASTM D5808
Determination of Total Sulfur in Aromatic Hydrocarbons and Related Chemicals by Ultraviolet Fluorescence acc. to ASTM D7183
Determination of Total Sulfur and Total Nitrogen in Synthetic Caoutchouc by High-temperature Combustion Coupled with Ultraviolet Fluorescence Detection and Chemiluminiscence Detection
Determination of Ultra Low Nitrogen in Aromatic Hydrocarbons by Oxidative Combustion and Reduced Pressure Chemiluminescence Detection Acc. to ASTM D7184
Determination of Total Chlorine in Different Types of Hydraulic Fluids by Coulometric Titration After High-temperature Combustion
Trace Nitrogen Determination in Adipic Acid by Catalyst-Free High-Temperature Combustion and Chemiluminescence Detection
Applications
Determination of Total Volatile Sulfur in Gaseous Hydrocarbons and Liquefied Petroleum Gases by Ultraviolet Fluorescence According to ASTM D6667 resp. ASTM D7551
Elemental Analysis for N/S/Cl Determination in Biofuels and Their Precursors
Heavy Fuel Oil, Feed Materials and Residues – Trustable Determination of High Nitrogen Contents in Viscose, Complex Matrices
Diesel Fuels and Fuel Additives – Interference-free Determination of Sulfur Traces by UV Fluorescence Detection with MPO
Standard Test Method for Determining Organic Chloride in Aromatic Hydrocarbons and Related Chemicals by Microcoulometry acc. to ASTM D5808
Determination of Total Sulfur in Aromatic Hydrocarbons and Related Chemicals by Ultraviolet Fluorescence acc. to ASTM D7183
Determination of Trace Nitrogen in Liquid Petroleum Hydrocarbons by Oxidative Combustion and Chemiluminescence Detection Acc. to ASTM D4629 / DIN 51444
Determination of Ultra Low Nitrogen in Aromatic Hydrocarbons by Oxidative Combustion and Reduced Pressure Chemiluminescence Detection Acc. to ASTM D7184
Determination of Nitrogen Contents in Petroleum Products by Boat-Inlet and Chemiluminescence Detection Acc. to ASTM D5762
Determination of Total Chlorine in Different Types of Hydraulic Fluids by Coulometric Titration After High-temperature Combustion
Ultra-sensitive High-throughput TS Analysis in Light Hydrocarbons, Spark Ignition Engine Fuel, and Diesel Engine Fuel by UV Fluorescence according to ASTM D5453 - Vertical Approach
Matrix-independent TS Determination in Light Hydrocarbons, Spark Ignition Engine Fuel, and Diesel Engine Fuel by UV Fluorescence according to ASTM D5453
Applications
Test Method for Total Chlorine in New and Used Petroleum Products by Oxidative Combustion and Microcoulometry according to IP 9076 resp. UOP 9076
multiWin Software Safe, intuitive and reducing workload
- Intuitive user guidance
- Comprehensive user-oriented functions like multi-point and multi-range calibration, blank correction, recalculation of results, free choice of results dimensions, statistical functions
- Integrated quality and performance check functions
- User management, audit trail
- Comfortable management and storage of data and parameters
- Automatic and manual data import and export functions
- Fully automatically control of maintenance intervals
- Extensive library of ready-made, compliant analysis methods
Accessories
Make use of the best accessories for the multi EA 5000 to adapt your every need.
- ABD – automatic boat drive – automatic introduction of quartz boats with liquid and solid samples into the analyzer
- Autoinjector – sample quantities up to 100 µl, flexible dosing speeds; manual sampling, automatic injection
- GSS - Gas Sampling System with adapter box – Introduction of gases under pressurized and unpressurized conditions; up to 100 ml gas volume at variable dosing speeds
- GSS/LPG combi module – dosage of compressed and liquefied gases; separate sample branches prevent cross-contamination
- LPG 2.0 module – direct, automatic LPG dosage; flexible sample volumes; compliant with ASTM D6667, D7551, DIN EN 17178
- MMS 5000 - Multi Matrix Sampler – automatic introduction of liquid and solid samples; high degree of automation
- TOC module – determination of environmentally relevant carbon parameters in water samples with high-temperature combustion
