Biometra Compact Multi-Wide Powerful with maximum flexibility
- Best solution for your needs in research and routine laboratories
- Robust quality design
- Efficient separation of nucleic acid fragments without loss of resolution
Product Details
Innovative power meets thoughtful designs
The Biometra Compact Multi-Wide is the latest member of the Compact Family and completes the electrophoresis portfolio for the identification, quantification and purification of nucleic acid fragments. Based on the Compact Family philosophy, the system offers a sophisticated chamber design , high-quality platinum electrodes and corrosion-resistant plugs for maximum reliability. With its 4 different gel tray lengths, it is the most variable model of the Compact Family for rapid screening as well as multiple sample loading with short or long separation distances. Depending on the size of the gel, up to 6 combs can be placed on the gel tray simultaneously, that a max. sample capacity of 192 samples could be achieved.
- UV-transparent gel trays
- Universal gel casting system for different gel tray length
- Extensive range of accessories for maximum flexibility

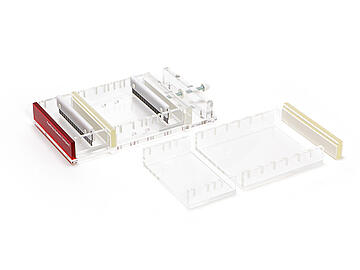

The universal gel casting system is designed for gel tray lengths from 7 cm up to 18 cm. A movable fixing element provide the flexibility required to quickly and securely fix the different length gel trays for the casting of gels. With mobile gel casting dams, multiple gels can simply be poured simultaneously:
- 3 gel tablets of 7 cm length
- 2 gel trays of 10 cm length
- 1 gel tray of 7 cm length + 1 gel tray of 10 cm length
- 1 gel tray of 7 cm length + 1 gel tray of 15 cm length
Technical Data
| Compact Multi-Wide | |
|---|---|---|
| Max.Voltage | 180 V | |
| Max.Current | 250 mA | |
| Max. Power | 20 W | |
| Electrode distance | 25 cm | |
| Gel size (W x L) | 15.0 x 7.0 cm | |
| 15.0 x 10.0 cm | ||
| 15.0 x 15.0 cm | ||
| 15.0 x 18.0 cm | ||
| Leveling | No | |
| Buffer volume | max. 1300 ml | |
| Max. Buffer temperature | 50 °C | |
Max. Capacity | 15.0 cm x 7.0 cm | 64 with 2 combs |
15.0 cm × 10.0 cm | 96 with 3 combs | |
15.0 cm × 15.0 cm | 160 with 5 combs | |
15.0 cm × 18.0 cm | 192 with 6 combs | |
| Dimensions (W x L x H) | 21.0 x 29.50 x 8.5 cm | |
| Weight | 1.6 kg | |
| Certification/Regulation | CE, EN 61 010 - 1 | |
| Gel Casting System | universal gel casting system with adjustable feet | |
Order Information
| Order number | Description |
|---|---|
| Order Information Compact Multi-Wide | |
| 846-025-500 | Compact Multi-Wide: Chamber with safety lid (W x D x H, cm = 29.5 cm x 21.0 cm x 8.5 cm), without accessories |
| 846-025-501 | Compact Multi-Wide: Chamber with safety lid (W x D x H, cm = 29.5 cm x 21.0 cm x 8.5 cm), UV transparent tray for gel size 15.0 cm x 7.0 cm, 2 combs (16 wells, 1.0 mm thick) |
| 846-025-591 | Compact Multi-Wide, 1 gel tray 15.0 cm x 7.0 cm, 2 combs (16 wells, 1.0 mm thick) + gel casting system Multi-Wide (see 025-501 + 025-510) |
| 846-025-502 | Compact Multi-Wide: Chamber with safety lid (W x D x H, cm = 29.5 cm x 21.0 cm x 8.5 cm), UV transparent tray for gel size 15.0 cm x 10.0 cm, 2 combs (16 wells, 1.0 mm thick) |
| 846-025-592 | Compact Multi-Wide, Compact Multi-Wide, 1 gel tray 15.0 cm x 10.0 cm, 2 combs (16 wells, 1.0 mm thick) + gel casting system Multi-Wide (see 025-502 + 025-510) |
| 846-025-503 | Compact Multi-Wide: Chamber with safety lid (W x D x H, cm = 29.5 cm x 21.0 cm x 8.5 cm), UV transparent tray for gel size 15.0 cm x 15.0 cm, 2 combs (16 wells, 1.0 mm thick) |
| 846-025-593 | Compact Multi-Wide, 1 gel tray 15.0 cm x 15.0 cm, 2 combs (16 wells, 1.0 mm thick) + gel casting system Multi-Wide (see 025-503 + 025-510) |
| 846-025-504 | Compact Multi-Wide: Compact Multi-Wide: Chamber with safety lid (W x D x H, cm = 29.5 cm x 21.0 cm x 8.5 cm), UV transparent tray for gel size 15.0 cm x 18.0 cm, 2 combs (16 wells, 1.0 mm thick) |
| 846-025-594 | Compact Multi-Wide, 1 gel tray 15.0 cm x 18.0 cm, 2 combs (16 wells, 1.0 mm thick) + gel casting system Multi-Wide (see 025-504 + 025-510) |
| 846-025-509 | Compact Multi-Wide: Compact Multi-Wide: Chamber with safety lid (W x D x H, cm = 29.5 cm x 21.0 cm x 8.5 cm), 4 UV transparent trays for gel size: 15 cm x 7.0 cm / 10.0 cm / 15.0 cm and 18.0 cm, 2 combs (16 wells, 1.0 mm thick) |
| 846-025-599 | Compact Multi-Wide: 4 gel trays 15.0 cm x 7.0cm / 10.0 cm/ 15.0 cm and 18.0 2 combs (16 wells, 1.0 mm thick) + gel casting system Multi-Wide (see 025-509 + 025-510) |
846-025-510 | Gel-Gießsystem Multi-Wide*: all-in-one casting chamber for all Multi-Wide *Movable casting dam set (846-025-528) is not included in the delivery |
| Order number | Description | |
|---|---|---|
| Accessories for Compact Multi-Wide | ||
| Combs, 1.0 mm thick | ||
| 846-025-537 | Preparative comb: 1 well (528 µl) plus 2 marker wells (16 µl/well), under discontinuation | |
| 846-025-538 | Preparative comb: 2 well (261 µl) plus 2 marker wells (16 µl/well) | |
| 846-025-531 | 14 wells, 36 µl/well | |
| 846-025-532 | 16 wells, 30 µl/well, multichannel pipet compatible, 9 mm spacing | |
| 846-025-533 | 22 wells, 20 µl/well | |
| 846-025-534 | 26 wells, 16 µl/well | |
| 846-025-535 | 32 wells, 12 µl/well, multichannel pipet compatible, 4.5 mm spacing Combs, 1.5 mm thick | |
| Combs, 1.5 mm thick | ||
| 846-025-547 | Preparative comb: 1 well (793 µl) plus 2 marker wells (24 µl/well), under discontinuation | |
| 846-025-548 | Preparative comb: 2 well (392 µl) plus 2 marker wells | |
| 846-025-549 | Preparative comb: 4 well (191 µl) plus 2 marker wells (24 µl/well), under discontinuation | |
| 846-025-541 | 14 wells, 55 µl/well | |
| 846-025-542 | 16 wells, 46 µl/well, multichannel pipet compatible, 9 mm spacing | |
| 846-025-543 | 22 wells, 30 µl/well | |
| 846-025-544 | 26 wells, 24 µl/well | |
| 846-025-545 | 32 wells, 18 µl/well, multichannel pipet compatible, 4.5 mm spacing | |
| Gel trays | ||
| 846-025-521 | Gel tray for 15.0 cm x 7.0 cm gel size, UV transparent, 2 comb positions with 2.9 cm distance | |
| 846-025-522 | Gel tray for 15.0 cm x 10.0 cm gel size, UV transparent, 2 comb positions with 4.4 cm distance, 3 comb positions with 2.9 cm distance | |
| 846-025-523 | Gel tray for 15.0 cm x 15.0 cm gel size, UV transparent, 2 comb positions with 6.9 cm distance, 3 comb positions with 4.6 cm distance, 5 comb positions with 2.7 cm distance | |
| 846-025-524 | Gel tray for 15.0 cm x 18.0 cm gel size, UV transparent, 2 comb positions with 8.4 cm distance, 3 comb positions with 5.6 cm distance, 6 comb positions with 2.8 cm distance | |
| 846-025-528 | Movable casting dam set, 2 casting dams to convert the all-in-one casting system for Multi-Wide into a multi-casting system for the shorter gel trays | |
| 846-025-550 | Casting/Levelling Tray, 20 x 30 cm | |
Well capacity refers for 5 mm thick gels.
Order information on suitable power supplies and adapters can be found here.
Downloads
Product Brochure Biometra Compact Family
Open PDF
