Biometra Compact XS/S, M und L/XL

Biometra Compact XS/S, M and L/XL Specially designed for daily laboratory work

  • Wide variety of chamber formats

  • Sophisticated chamber design for easy and safe handling

  • UV-transparent gel trays

Product Details

Suitable solution for your application

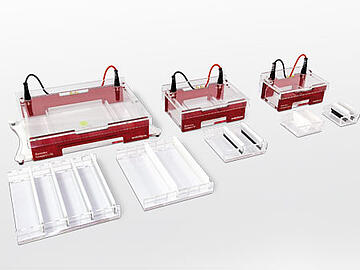

The Biometra Compact series consist of five models for a different sample throughput. The innovative concept of ergonomic design, simple operation and outstanding performance has been proven one´s worth many times, making the Compact family the perfect choice for manual nucleic acid analysis.

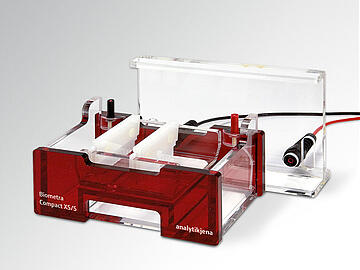

  • Compact XS / S for mini gels with gel tray XS or S
  • Compact M for midi gels with gel tray M
  • Compact L / XL for maxi gels with gel tray L or XL

Nucleic acid analysis in perfection
The Biometra Compact family was developed for professional measurements and analysis of nucleic acids in research and routine laboratories. Due to their excellent resolution, the horizontal electrophoresis systems offer a greater precision and thus better data interpretation accuracy, even with small nucleic acid fragments.
Well suited for daily use, the Biometra Compact systems are characterized by a high-quality acrylic construction, a unique bigfoot safety lid, and the use of durable components such as corrosion protected platinum electrodes and gold-coated plugs. This guarantees maximum durability and reliability in all applications.

  • Precise separation
  • High quality components and excellent design for long-term reliability
  • Highest standards in operational safety

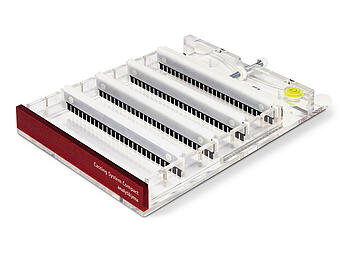

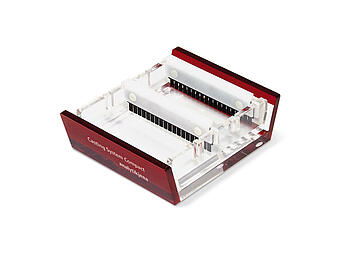

The innovative gel casting systems set new standards in terms of speed and ease-of-use." Plug-and-cast "gel casting systems for the gel tray sizes XS, S and M guarantee leak-proof gel casting in seconds: just drop the gel tray in and fix with minor contact pressure - done! For the maxi gels L and XL an easy to use gel casting system with adjustable feet and bull´s eye level is available.

  • Unique gel casting systems ensure simple and leak-free gel casting
  • Extensive accessories provide a high level of versatility

Technical Data



Compact XSCompact SCompact MCompact LCompact XL
Max. Voltage180 V180 V250 V
Max. Current200 mA250 mA500 mA
Max. Power12 W20 W30 W
Electrode distance17 cm21.5 cm34 cm
Gel size (W x D)8.2 cm × 7.1 cm8.2 cm × 10.6 cm12.4 cm × 14.5 cm23.9 cm × 20.0 cm23.9 cm × 25.1 cm
LevelingNoNoYes
Buffer volume360 ml580 ml1660 ml
Max. Buffer temperature50 °C50 °C50 °C
Max. Capacity32 with 2 combs48 with 3 combs100 with 4 combs312 with 6 combs416 with 8 combs
Dimensions (W x D x H)13.6 x 21.6 x 10.6 cm17.7 x 25.8 x 10.9 cm29.4 x 38.2 x 11.2 cm
Weight1.0 kg1.5 kg3.2 kg
Certification/Regulation CE, EN 61 010 - 1CE, EN 61 010 - 1CE, EN 61 010 - 1
Gel Casting SystemPlug-and-CastPlug-and-CastGel casting system with adjustable feet and leveling

Order Information

Order numberItem
 Order Information Compact XS and Compact S
846-025-000Compact XS: Chamber with bigfoot safety lid (W x D x H, cm = 13.6 x 21.6 x 10.6), UV transparent tray
for gel size 8.2 cm x 7.1 cm, 2 combs (11 wells, 1.0 mm thick)
846-025-010Gel casting system XS: Casting chamber for gel tray
8.2 cm x 7.1 cm, delivered without gel tray
846-025-099Compact XS system: Compact XS + gel casting system XS (see 025 - 000 + 025 - 010)
846-025-100Compact S: Chamber with bigfoot safety lid (W x D x H, cm = 13.6 x 21.6 x 10.6), UV transparent tray
for gel size 8.2 cm x 10.5 cm, 2 combs (11 wells, 1.0 mm thick)
846-025-110Gel casting system S: Casting chamber for gel tray
8.2 cm x 10.5 cm, delivered without gel tray
846-025-199Compact S system: Compact S + gel casting system S (see 025 -100 + 025 -110)
 Order Information Compact M
846-025-200Compact M: Chamber with bigfoot safety lid (W x D x H, cm = 17.7 x 25.8 x 10.6), UV transparent tray for gel size 12.4 cm x 14.5 cm, 2 combs (18 wells, 1.0 mm thick)
846-025-210Gel casting system M: Casting chamber for gel tray 12.4 cm x 14.5 cm, delivered without gel tray
846-025-299Compact M system: Compact M + gel casting system M (see 025 - 200 + 025 - 210)
 Order Information for Compact L and Compact XL
846-025-300Compact L: Chamber with levelling feet, gauge and bigfoot safety lid (W x D x H, cm = 29.4 x 38.2 x 11.2), UV transparent tray for gel size 23.9 cm x 20.0 cm,
3 combs (36 wells, 1.0 mm thick)
846-025-310Gel casting system L/XL: Gel caster with levelling feet and gauge for gel tray 23.9 cm x 20.0 cm and gel tray 23.9 cm x 25.0 cm, delivered without gel tray
846-025-399Compact L system: Compact L + gel casting system L/XL (see 025 - 300 + 025 - 310)
846-025-400Compact XL: Chamber with levelling feet, gauge and bigfoot safety lid (W x D x H, cm = 29.4 x 38.2 x 11.2), UV transparent tray for gel size 23.9 cm x 25.0 cm,
4 combs (26 well, 1.5 mm thick)
846-025-499Compact XL system: Compact XL + gel casting system L/XL (see 025 - 400 + 025 - 310)
Order numberItem
 Accessories for Compact XS and Compact S
Combs, 1.0 mm thick
846-025-0018 wells, 30 µl/well, multichannel pipet compatible,
9 mm spacing
846-025-00211 wells, 20 µl/well
846-025-00313 wells, 16 µl/well
846-025-00416 wells, 12 µl/well, multichannel pipet compatible,
4.5 mm spacing
 Combs, 1.5 mm thick
846-025-015Preparative comb: 1 well (342 µl) plus
2 marker wells (30 µl/well)
846-025-0118 wells, 45 µl/well, multichannel pipet compatible,
9 mm spacing
846-025-01211 wells, 30 µl/well
846-025-01313 wells, 24 µl/well
846-025-01416 wells, 18 µl/well, multichannel pipet compatible,
4.5 mm spacing
 Gel trays
846-025-020Gel tray XS for 8.2 cm x 7.1 cm gel size, UV transparent, 2 comb positions with 3.0 cm distance
846-025-021Gel tray S for 8.2 cm x 10.5 cm gel size, UV transparent, 2 comb positions with 4.7 cm distance, 3 comb positions with 3.1 cm distance
846-025-006Loading stripes, adhesive, red / green / yellow
for gel tray XS and S
 Accessories for Compact M
Combs, 1.0 mm thick
846-025-20111 wells, 36 µl/well
846-025-20213 wells, 30 µl/well, multichannel pipet compatible,
9 mm spacing
846-025-20318 wells, 20 µl/well
846-025-20421 wells, 16 µl/well
846-025-20525 wells, 12 µl/well, multichannel pipet compatible,
4.5 mm spacing
 Combs, 1.5 mm thick
846-025-216Preparative comb: 1 well (594 µl) plus
2 marker wells (30 µl/well)
846-025-21111 wells, 54 µl/well
846-025-21213 wells, 45 µl/well, multichannel pipet compatible, 9 mm spacing
846-025-21318 wells, 30 µl/well
846-025-21421 wells, 24 µl/well
846-025-21525 wells, 18 µl/well, multichannel pipet compatible,
4.5 mm spacing
 Gel trays
846-025-221Gel tray M for 12.4 cm x 14.5 cm gel size, UV transparent, 3 comb positions with 4.5 cm distance,
4 comb positions with 3.3 cm distance
846-025-206Loading stripes, adhesive, red / green / yellow
for gel tray M
 Accessories for Compact L and Compact XL
Combs, 1.0 mm thick
846-025-30122 wells, 36 µl/well
846-025-30226 wells, 30 µl/well, multichannel pipet compatible,
9 mm spacing
846-025-30336 wells, 20 µl/well
846-025-30442 wells, 16 µl/well
846-025-30552 wells, 12 µl/well, multichannel pipet compatible,
4.5 mm spacing
 Combs, 1.5 mm thick
846-025-316Preparative comb: 1 well (1284 µl) plus
2 marker wells (30 µl/well)
846-025-31122 wells, 54 µl/well
846-025-31226 wells, 45 µl/well, multichannel pipet compatible,
9 mm spacing
846-025-31336 wells, 30 µl/well
846-025-31442 wells, 24 µl/well
846-025-31552 wells, 18 µl/well, multichannel pipet compatible,
4.5 mm spacing
 Gel trays
846-025-320Gel tray L for 23.9 cm x 20.0 cm gel size, UV transparent, 6 comb positions with 3.1 cm distance
846-025-321Gel tray XL for 23.9 cm x 25.0 cm gel size, UV transparent, 8 comb positions with 3.0 cm distance
846-025-306Loading stripes, adhesive, red / green / yellow
for gel tray L and XL

Order information on suitable power supplies and adapters can be found here.

Downloads

Product Brochure Biometra Compact Family

Open PDF
