Technical Data

Biometra TOne
Biometra TAdvanced
Biometra TRIO

Technology Overview

Unique feature	Biometra TOne	Biometra TAdvanced	Biometra TRIO
Fast Ramping, Highest Accuracy, Block/Well Control	✓	✓✓	✓
Whisper Quiet technology	✓	✓	✓
High-Performance Smart Lid	✓	✓	✓
Quick Block Exchange		✓
Linear Gradient Tool	✓	✓
Approximate linear temperature increment	In rows 4 to 8	In rows 3 to 10
Temperature Optimization Step			✓
Protocol Wizard		✓	✓
Advanced User Management		✓	✓
Three block system			✓
Twin block model		✓
PCR Control App	✓	✓	✓

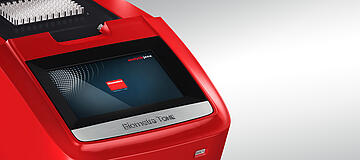

Biometra TOne

Modell	Biometra TOne 96	Biometra TOne 96 G
Capacity	96 x 0.2 ml tubes/ 96 well microtiter plate/12 x 8 well strips, 0.2 ml
Block	Aluminum, special alloy
Max. heating rate¹	4.0 °C/s
Max. cooling rate¹	3.3 °C/s
Max./min. gradient²	-	20 °C/0.1 °C
Gradient temperature range²	-	20 °C bis 99 °C
Temperature uniformity at 55 °C after 15 s	± 0.20 °C
Temperature range	3 °C bis 99 °C
Control accuracy	± 0.1 °C
Lid temperature range	30 °C bis 110 °C
Automatic restart after power failure	Yes
Software	User-specific quick start option for the five most recent programs; program preview before start; option for toggling between table and graph programming mode; Linear Gradient Tool; Service Info Files (SINF) generation; expanded selftest; adjustable heating and cooling rates; gradient temperature diagram view; thermal cycler control via PCR Control App
Program memory	350 programs à 6 steps in up to 90 user directories
Language	English, German, Chinese
Dimensions (W x D x H, mm)	260 x 430 x 241
G = with gradient function 1 measured within sample block 2 applies only to cycler models with gradient function For more technical details please refer to the corresponding Technical Data sheets.

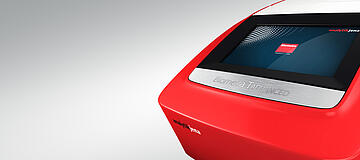

Biometra TAdvanced

Model	Biometra TAdvanced 96/96 G	Biometra TAdvanced 96 S/96 SG	Biometra TAdvanced 60/60 G	Biometra TAdvanced 384/384 G	Biometra TAdvanced Twin 48/48 G³	Biometra TAdvanced Twin 30	Biometra TAdvanced Twin Combi
Capacity	96 x 0.2 ml tubes/ 96 well microtiter plate/ 12 x 8 well strips, 0.2 ml	96 x 0.2 ml tubes/ 96 well microtiter plate/ 12 x 8 well strips, 0.2 ml	60 x 0.5 ml tubes	384 well microplate	2 x 48 x 0.2 ml tubes/ 2 x 48 well microtiter plate / 2 x 6 x 8 well strips, 0.2 ml	2 x 30 x 0.5 ml tubes	2 x 48 x 0.2 ml tubes/ 2 x 6 x 8 well strips, 0.2 ml/ 2 x 48 well microtiter plate/ 2 x 18⁴x 0.5 ml tubes
Block	Aluminum, special alloy	Silver, gold-coated	Aluminum, special alloy	Aluminum, special alloy	Aluminum, special alloy	Aluminum, special alloy	Aluminum, special alloy
Block exchange	Quick-X-Change
Duration block exchange	Less than 10 s
Max. heating rate*	6.0 °C/s	8.0 °C/s	6.0 °C/s	4.0 °C/s	5.2 °C/s	4.2 °C/s	3.1 °C/s
Max. cooling rate*	4.0 °C/s	5.5 °C/s	4.0 °C/s	2.0 °C/s	4.1 °C/s	3.3 °C/s	2.3 °C/s
Avg. heating rate*	5.5 °C/s	7.0 °C/s	5.5 °C/s	3.8 °C/s	5.1 °C/s	4.1 °C/s	3.0 °C/s
Avg. cooling rate*	3.5 °C/s	4.5 °C/s	3.0 °C/s	1.7 °C/s	4.0 °C/s	3.1 °C/s	2.0 °C/s
Max./Min. gradient*	30 °C/0.1 °C	40 °C/0.1 °C	30 °C/0.1 °C	24 °C/0.1 °C	20 °C/0.1 °C³	-	-
Temperature uniformity	95 °C ± 0.60 °C after 15 s 70 °C ± 0.30 °C after 15 s 55 °C ± 0.20 °C after 15 s	95 °C ± 0.50 °C after 15 s 70 °C ± 0.25 °C after 15 s 55 °C ± 0.15 °C after 15 s	95 °C ± 0.60 °C after 15 s 70 °C ± 0.25 °C after 15 s 55 °C ± 0.20 °C after 15 s	95 °C ± 0.50 °C after 15 s 70 °C ± 0.25 °C after 15 s 55 °C ± 0.15 °C after 15 s	95 °C ± 0.60 °C after 15 s 70 °C ± 0.30 °C after 15 s 55 °C ± 0.20 °C after 15 s	95 °C ± 0.60 °C after 15 s 70 °C ± 0.30 °C after 15 s 55 °C ± 0.20 °C after 15 s	95 °C ± 0.50 °C after 15 s 70 °C ± 0.25 °C after 15 s 55 °C ± 0.20 °C after 15 s
Gradient temperature range¹	20 °C to 99 °C	4 °C to 99 °C	-	-	20 °C to 99 °C	-	-
Temperature range	3 °C to 99 °C
Control accuracy	± 0.1 °C
Software	User-specific quick start option for the five most recent programs; program preview before start; option for toggling between table and graph programming mode; Linear Gradient Tool¹; Service Info Files (SINF) generation; expanded self-test; adjustable heating and cooling rates; gradient temperature diagram view¹; Ethernet-based PC control; comprehensive user administration tool; Protocol Wizard
Program memory	350 programs à 6 steps in up to 90 user directories
Language	English, German, Chinese
Display	7“ color touchscreen
Automatic restart after power failure	Yes
High Performance Smart Lid (HPSL) technology	Yes
Heated lid temperature range	30 °C to 110 °C
Power consumption	850 Watt
Operating voltage	100, 115, 230 Volt, 50–60 Hz
Noise emission	Very low
interfaces²	USB A, Ethernet
Ambient conditions	15 °C to 35 °C, 70 % humidity, max. 2.000 m NN
Dimensions (B x T x H)	277 mm x 457 mm x 264 mm
Dimensions (B x T x H) with open lid	277 mm x 457 mm x 414 mm
Weight	15 kg
* measured within sample block ¹ only for model type „G“ with gradient function ² The network cable must be at least Cat 5e and the cable configuration must be STP. ³Gradient feature included in on e block of the twin-block module. ⁴ The capacity increases to 35 x 0.5 ml tubes when using tubes with small caps.

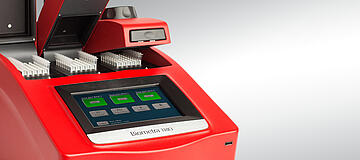

Biometra TRIO

	Biometra TRIO 30	Biometra TRIO 48	Biometra TRIO combi
Capacity	3 blocks for 30 x 0.5 ml tubes each	3 blocks for 48 x 0.2 ml tubes or 48 well microplates or 6 x strips of 8 each	3 combi blocks for 18 x 0.5 ml tubes** or 48 x 0.2 ml tubes, or 48 well microplates or 6 x strips of 8
Max. heating rate*	4.0 °C/s	5.0 °C/s	3.0 °C/s
Heating rate*	3.6 °C/s	4.2 °C/s	2.7 °C/s
Max. cooling rate*	3.6° C/s	4.5 °C/s	2.7 °C/s
Temperature uniformity	±0.20 °C after 15 s at 50 °C ±0.30 °C after 15 s at 70 °C ±0.60 °C after 15 s at 95 °C
Temperature range	3 °C to 99 °C
Control accuracy	+/- 0.1 °C
Software	User specific quick start of the last five programs, program preview prior to start, toggle between spread-sheet and graphical programming mode, Temperature Optimization Step (TOS), Service Info Files (SINF), Extended Self-Test (EST), adjustable ramp rates, PC control via Ethernet, comprehensive user administration tool, protocol wizard, annealing temperature calculator
Program memory	350 programs à 6 steps in up to 90 user directories
Language	English, German, Chinese
Display	7“ color touchscreen
Automatic restart after power failure	Yes
High-Performance Smart Lid (HPSL) technology	Yes
Lid temperature range	30 °C to 110 °C
Power consumption	1000 Watt
Power supply	100 V, 115 V, 230 V, 50–60 Hz
Noise emission	Very low
Interfaces¹	USB A, Ethernet
Ambient conditions	15 °C bis 35 °C, 70 % humidity, max. 2.000 m NN
Dimensions (B x H x T)	300 mm x 250 mm x 410 mm
Weight	17.3 kg
* measured within sample block ** capacity increases to 35 x 0.5 ml tubes by use of small cap tubes 1 the network cable must be at least performance class Cat 5e and the cable configuration has to be STP
